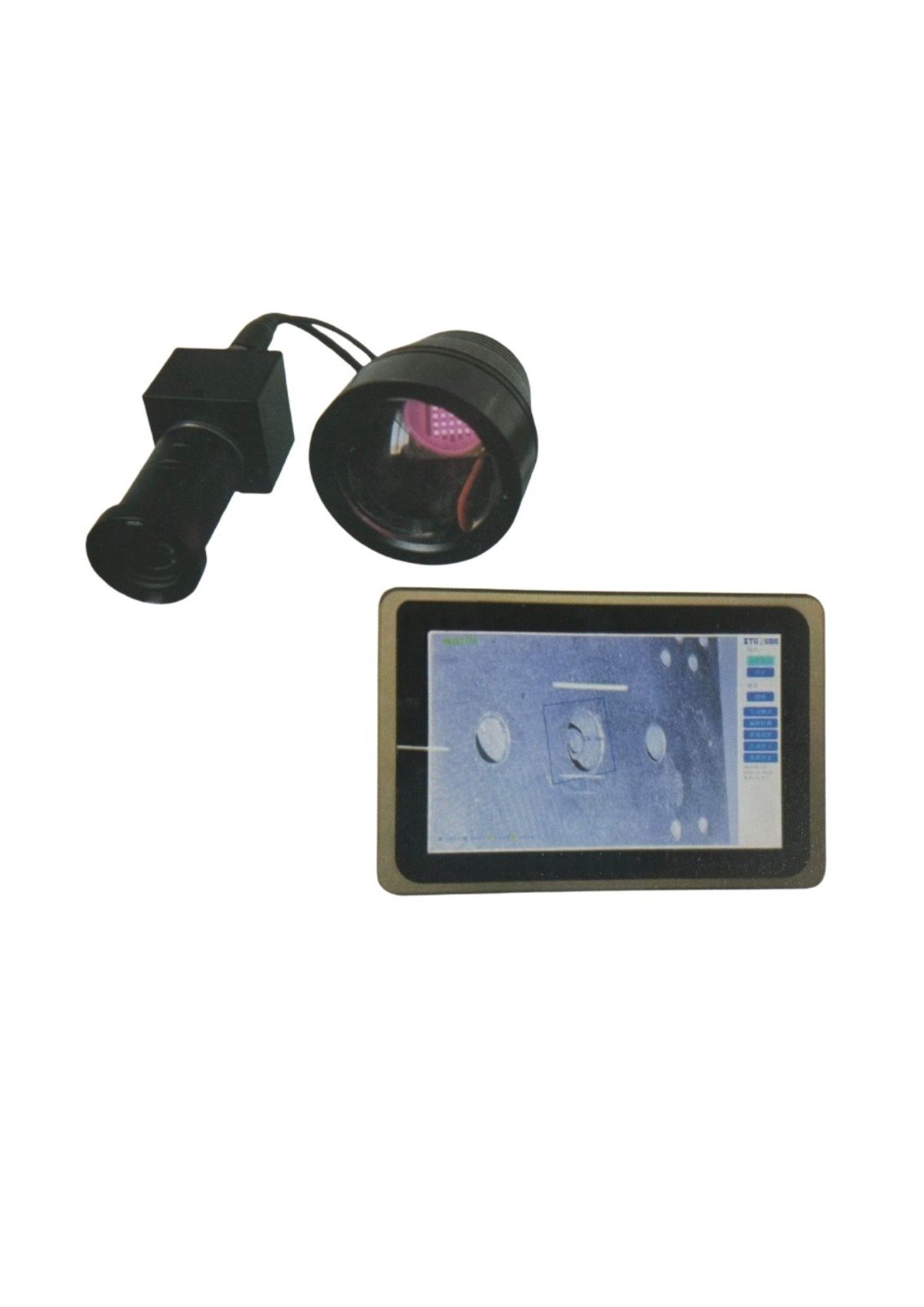

Mold Monitor ( Visual Camera System For Mold)
Our products and solutions are widely applicable to industries such as automotive, medical, 3C,home appliances, electronic die casting, and stamping, providing system support for mold protection and product quality inspection. They can handle high-definition, high-precision images with high-speed digital processing and calculation in 0.012 seconds, easily handling high-speed molding processes of less than one second. The device features a large 11.6-inch touchscreen. This large screen presents high-definition, high-precision images more clearly. The updated interface, especially the operability of the monitoring area, has seen a significant improvement, allowing for more intuitive and faster setting of detailed monitoring areas.
CONFIGURATION INFORMATION
| SERIAL NUMBER | PRODUCT NAME | PARAMETERS / SPECIFICATIONS | PLACE OF PRODUCTION | QUANTITY |
|---|---|---|---|---|
| 1 | Industrial control all-in-one machine | Industrial host with J3835 processor, 4GB RAM, 32MB SSD, 12TB HDD, industrial-grade touchscreen display, strong anti-interference capabilities, dynamic drift and automatic compensation algorithms. | Taiwan Fujita (Custom-made) | 1 |
| 2 | PC software | Three-Body V2.0 Visual Software (Fifth Generation Latest Version, More Convenient to Use) – Three-body vision development. | 1 | |
| 3 | Industrial camera | 5MP camera, 2464×2056 resolution, monochrome display with built-in filter for clear images, imported image sensor. | German Dushen | 1 |
| 4 | Industrial lens | 5-megapixel zoom lens, 8–50mm or 7–36mm, with zoomable field of view and strong adaptability. | Japanese Canon | 1 |
| 5 | Infrared light source | 840mm wide voltage design; infrared light/imported visible-light filter lamp core; 7075 aviation-grade aluminum all-metal heat-dissipation shell; high stability and wide temperature range. | Osram USA | 1 |
| 6 | Magnetic seat | 1200N suction power, imported universal magnetic design, super strong suction, highly practical. | Taiwan Shangheng | 2 |
| 7 | I/O controller | 4 inputs and 4 outputs, externally equipped, easy to disassemble, strong anti-interference. | Three Body Vision | 1 |
| 8 | Buzzer | Custom made. | Taiwan Zhongwei | 1 |
| 9 | Relay | LM2C-L-DC24V | Taiwan Delta | 1 |
| 10 | 12V power supply | LS-100W-12 | Taiwan Mingwei | 1 |
| 11 | 10 signal lines | Customized industrial-grade U3.25, 5m | Three Body Vision | 1 ITEM |
| 12 | Camera cable | 5-meter USB shielded data cable | Three Body Customization | 1 ITEM |
| 13 | Light source line | 5-meter power cord with soft rubber sheath, highly adaptable | Three Body Customization | 1 ITEM |
| 14 | Industrial control host power cord | Custom made | Three Body Vision | 1 ITEM |
| 15 | Magnetic hook | Strong magnetic cantilever hook can withstand 40KG | Three Body Customization | 1 SET |
| 16 | Winding tube | Customized 5-meter detachable, easy to use | Three Body Vision | 1 ITEM |
| 17 | I/O data cable | 5-meter industrial-grade 8-core I/O data cable | Three Body Vision | 1 ITEM |
| 18 | 180° rotation adjustment bracket | Special for injection molding machine | Three Body Customization | 1 SET |
| 19 | Operation Manual | PDF document version 1.0 | Three Body Editor | 1 SET |
